Hack du jour: Powering Europlug wall warts from UK power strips

wallwart1

I have a few guitar pedals and effects units that came from continental Europe and therefore have a two-pronged “Europlug” for power.

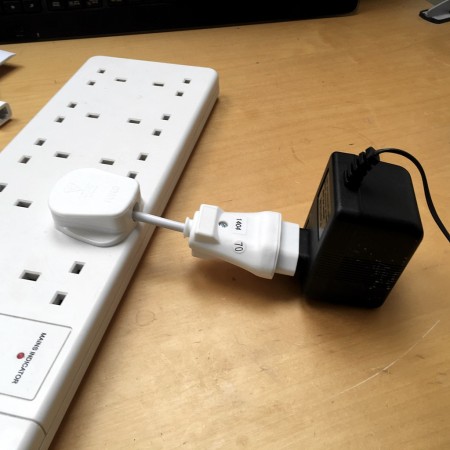

Inspired by power extension cords, I’ve built some adapter cords that solve a couple of problems neatly.

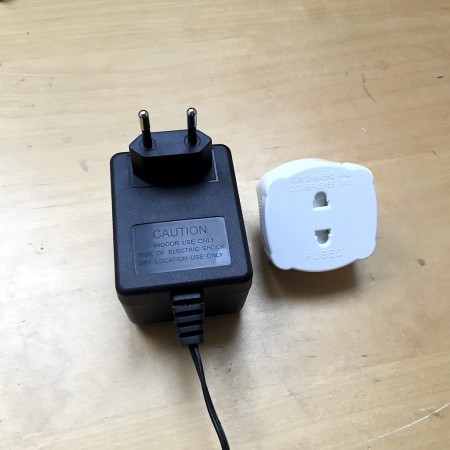

The traditional method of plugging a Europlug power supply into a socket uses a travel adapter or shaving adapter, as shown below.

wallwart3

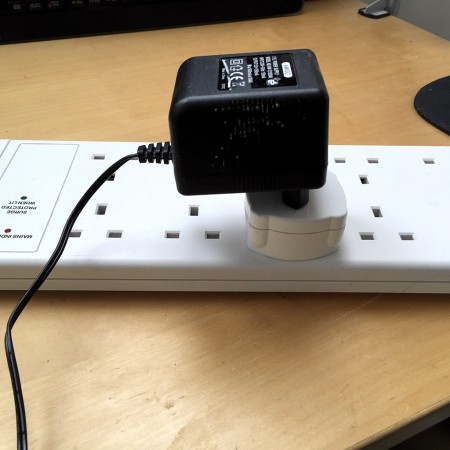

Using this on a power strip (which is the ubiquitous method for powering guitar pedal or effects units) leads to a couple of problems:

  • the asymmetry of the power supply coupled with the general mechanical crappiness of the contacts in shaver adapters means that power supply at the very least sits at a funny angle, and at worst has a unreliable electrical connection to the mains;
  • the positioning of the power supply can potentially block the socket next to it in the power strip.

wallwart2

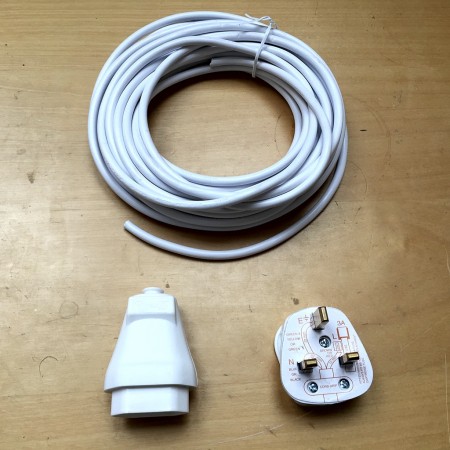

Gathering together materials: Some 13-amp plugs fitted with 3A fuses; some 6A two-core electrical cable; and some inline Europlug trailing sockets. The latter took a bit of finding; I bought mine from eBay seller mikdan75

.

wallwart4

wallwart5

wallwart1
