Pcb Manufacture in the Lab

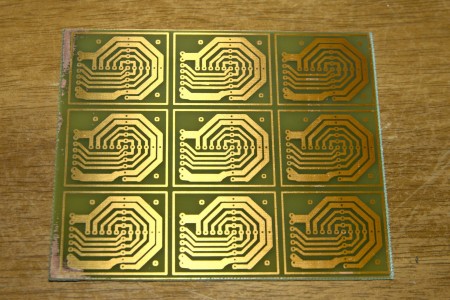

Our inhouse PCB manufacture is improving, with 100% yield of a prototype non polar data and power connector.  Results below.  Had to print exposure mask at 110% so that the printer printed at the right size.

non polar 4 * data and power connector
